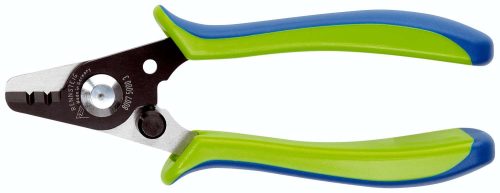

Microstrip for PTFE insulation
₹369.00 Original price was: ₹369.00.₹284.00Current price is: ₹284.00.
This precision tool is designed for stripping PTFE-insulated copper cables with ultra-fine cores and cross-sections ranging from AWG 40–26 (0.005–0.14 mm²). It features:
- Fixed End Stops: For AWG 36/34 (0.01–0.02 mm²) and AWG 40/38 (0.005–0.008 mm²).
- Activatable End Stops: For AWG 28/26 (0.08–0.14 mm²) and AWG 32/30 (0.03–0.06 mm²).
- Laser-Marked Positions: Two stripping points on both front and rear sides for precise operation.
- High-Quality Cutting Edge: Profiled V-blades for clean stripping.
- Durable Build: Made from hardened tool steel with a black oxide finish.
- Comfortable Use: Ergonomic 2-component grips for ease and efficiency.
Perfect for handling ultra-fine PTFE-insulated cables with high precision.
In Stock
Did you like this product? Add to favorites now and follow the product.
Add to Wishlist
Add to Wishlist
Low Prices
Price match guarantee
100% Guarantee.
Always the correct part
Easy Returns.
Quick & Hassle Free
Additional information
- For stripping PTFE-insulated copper cables with ultra-fine cores and cross-sections of AWG 40–26 (roughly equivalent to 0.005–0.14 mm²)
- Fixed end stop for cross-section ranges AWG 36/34 and 40/38 (roughly equivalent to 0.01–0.02 mm² and 0.005–0.008 mm²)
- End stop can be activated for cross-section ranges AWG 28/26 and 32/30 (roughly equivalent to 0.08–0.14 mm² and 0.03–0.06 mm²)
- Two laser-marked stripping positions on each of the front and rear sides
- Profiled cutting edge with V-blades
- Hardened tool steel, black oxide surface finish
- Comfortable and ergonomic 2-component grips
